HR-20KWAD
HIPOWER
Product Introduction:

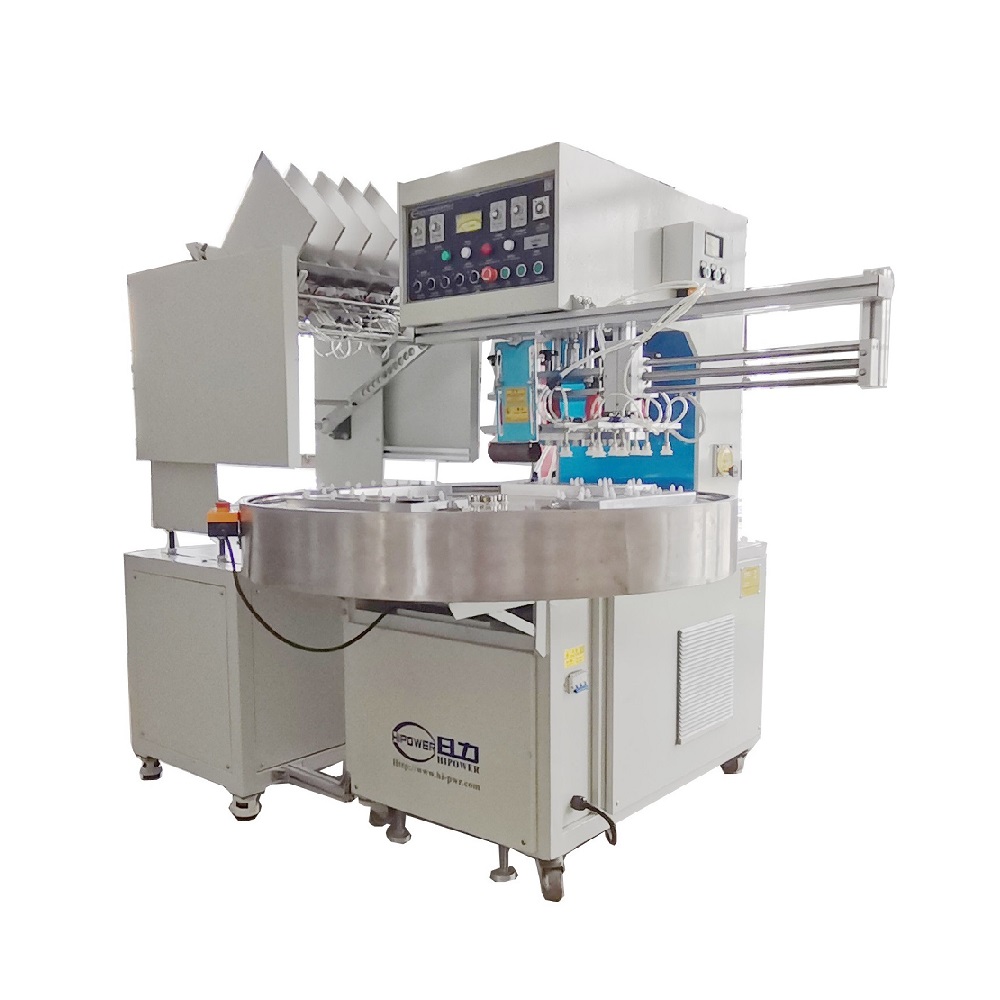

Full Automatic Auto Loading Continuous HF PVC Bgas Welding Machine Production Line Type
Character:
Adopting PLC programme, micro computer trouch screen control, easy and clear to reach precision
NL-5557 high frequency anit-sparckle protection system, high sensitive
Photo electric induction, no any defects
Automatic feeding, receiving, cutting material to improve working efficiency
1. Spark suppressor: When sparks, the special electronic circuit works and cuts off the high frequency to suppress spark automatically and minimize the damage of electrodes and materials. Also. The warning lights works.
2. Prevention for radio interference device: Equipped with frequency stabilizer and high-frequency magnetic leakage suppressor. This device eliminates the leakage of radio waves to interfere other electronic devices such as TV, radios, etc..
3. Safety devices: When the current exceeds the limit value, the overload current relay works to protect oscillator and rectifier automatically. Frequency deviation caused by the improper operation is also prevented.
4. Easily adjustable device: Output power can be adjusted according to electrode size and material thickness. Other control devices and special electronic circuits can reduce required welding time and improve the machine's productivity.
Since 2000, Hipower concentrates on highest quality, on-time delivery, professional technology
support, customer-oriented service and competitive price.
1. Customer's site installation, training & maintenance available
2. (Time zone difference) 1-12 hours Online service by Email, Fax, Video Online for basic setup and repairs
3. Service of 12 months warranty for machine, life-long tech. support
4. Examining mold drawings on your behalf to confirm optimum structure size meeting high frequency process;
5. Providing assistance in manufacturing and modifying tools;
Model | HR-8KW | HR-10KW | HR-12KW |
HF Power | 8KW | 10KW | 12KW |
HF Frequency | 13.56MHZ | ||
Voltage | AC 380V 3Phases 50HZ / Customer request | ||
Pneumatic Pressure | 0.1 - 0.8Mpa | ||
Input Power： | 15KVA | 18KVA | 20KVA |
Max. Pressure： | 2T Pneumatic | ||
Max. Electrodes Gap ： | 175MM | ||
Electrode Gap： | 150MM | ||
Upper Electrode： | 500*700mm | 500*700mm | 500*700mm |
Heating on Upper Electrode： | 0 to 200°C | ||
Lower Work Platen： | 500*700mm | 500*700mm | 500*700mm |
Output Time | 0.01 - 30S Adjustable | ||
Control Method | Control Panel Type | ||
HF Generator | HIPOWER 8KW | HIPOWER 10KW | HIPOWER 12KW |
Parameter Setting | HF Power+Time Adjusting+Pressure Adjusting | ||
Welding Depth Setting | HF Power+Time Adjusting+Pressure Adjusting | ||
Balance Setting | Upper Electrode Balance + Balance Screws Adjusting | ||
Optional Function | Auto Tuning System on Extra cost | ||
Standard | CE Certificate | ||
Packing Information | L4500*W1100*H1850 mm; G.W.: 1000KGS； | ||
Mahine General Features:
1. Anti-flash system, to protect the tooling / mould;
2. Equipped with special high precision rotary indexing gear controlled by frequency inverter.
3. Automated HF weld cycles with adjustable rotating speed
4. With the use of touch screen HMI and programmable PLC operator can easily input parameters set.
5. Heated Upper platen with thermostat, for helping HF sealing process
6. Close off HF welding function, the machine can be use as Standard Heat Welder
7. Universal usage for PVC, PET-G,A-PET,GAG, PU, PET, PLA films
8. European-model square high frequency vibration box, more reliable and stable in output
9. CE rated machine; factory verified by SGS and BV;
10. Customer's site installation, training & maintenance available
11. Online service by Email, Fax, Video Online- allowing remote live video servicing of basic setup and repairs through the use of
face-to-face online video.
12. High frequency welding press pneumatically operated
4. Mainly application
This high frequency welding machine is widely applied for medical industrial, like , medical transfusion bag, medical blood bag, medical urine bag, and relative one-off medical bag
