| Quantity: | |
|---|---|
HR-10KWT-4AC
HIPOWER
Product Introduction:

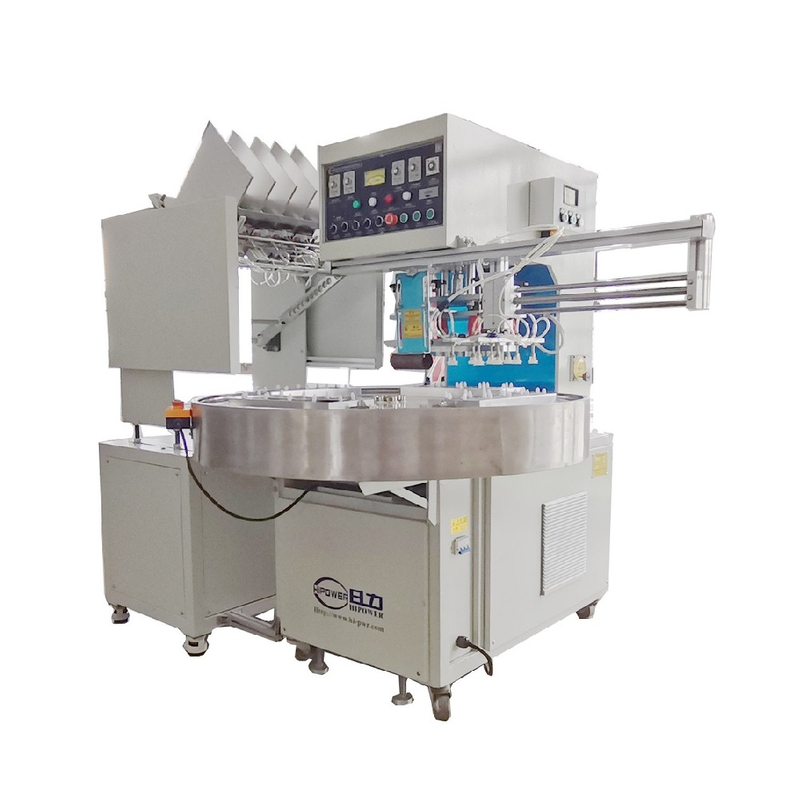

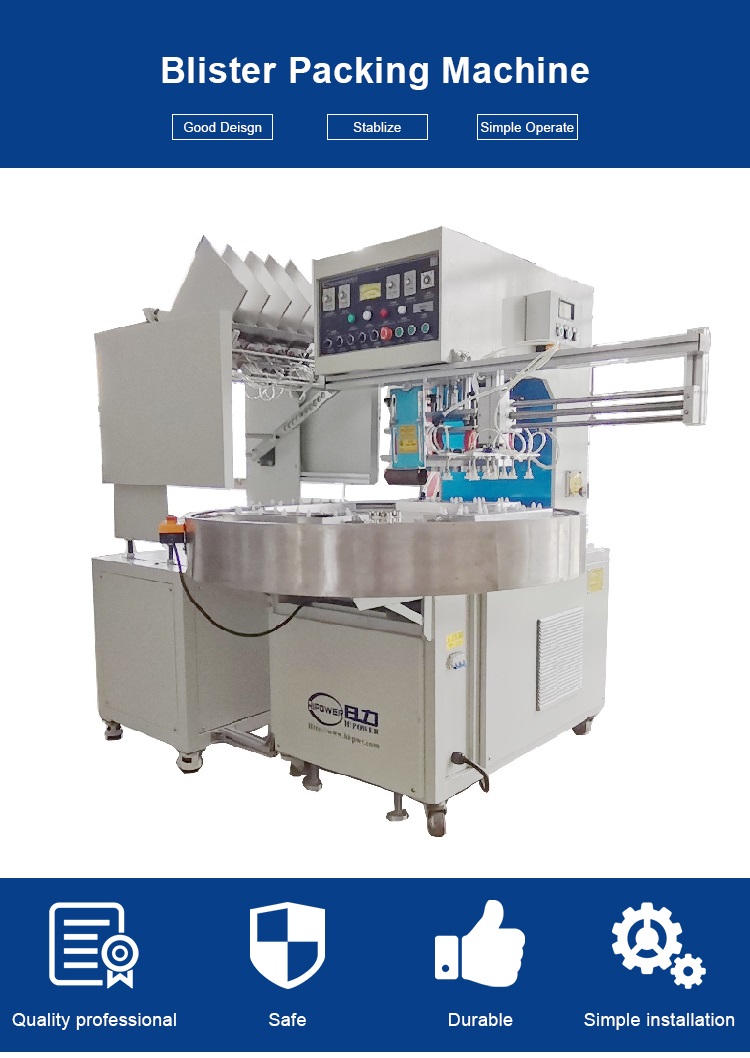

Auto Loading Blister Paper Carton Card Sealing Machine by High Frequency Welding Technology
Feature:
We have divided our high frequency synchronous welding and cutting machines into several different productcategories.
1.Automatic turntable high frequency synchronous welding and cutting machine(with/without robot)
2.automatic sliding way high frequency synchronous welding and cutting machine
3.manual shuttle way high frequency synchronous welding and cutting machine
4.Double heads high frequency synchronous welding and cutting machine.
5.manual turntable high frequency only welding machine(with/without robot)

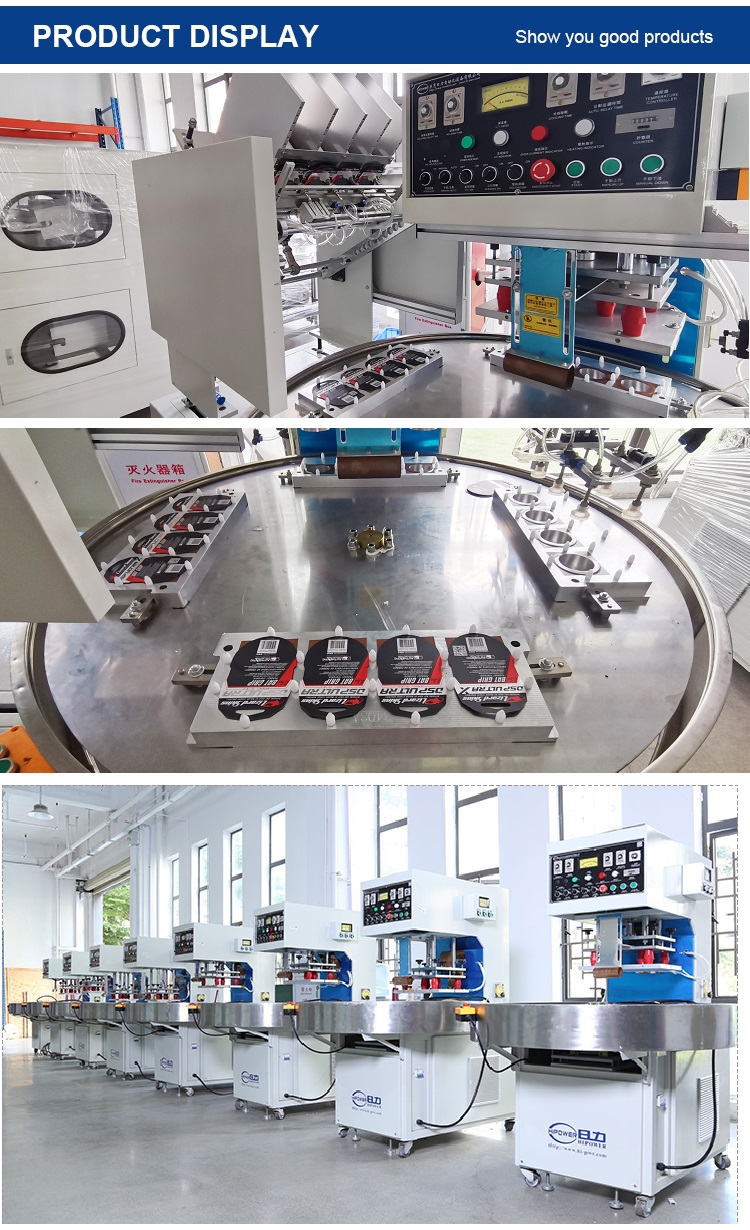

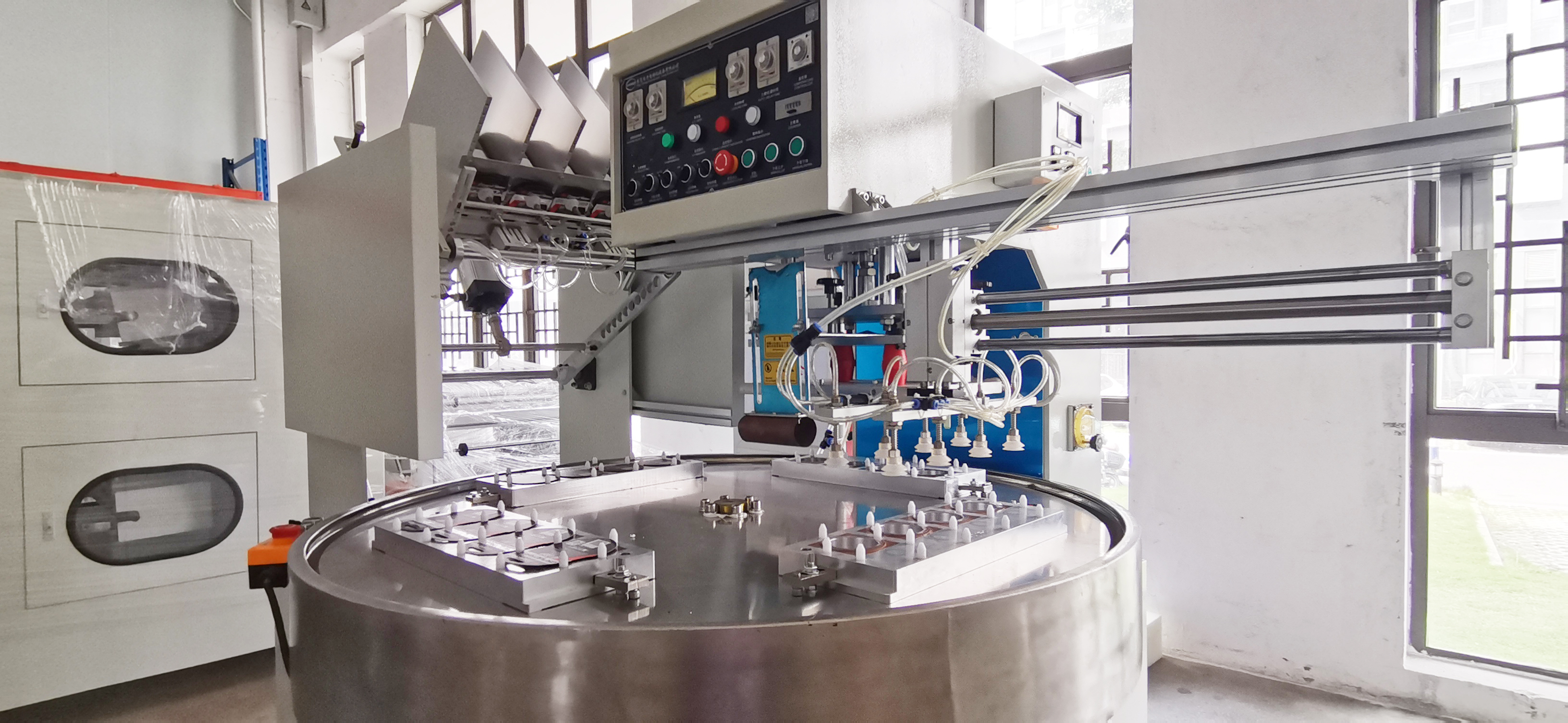

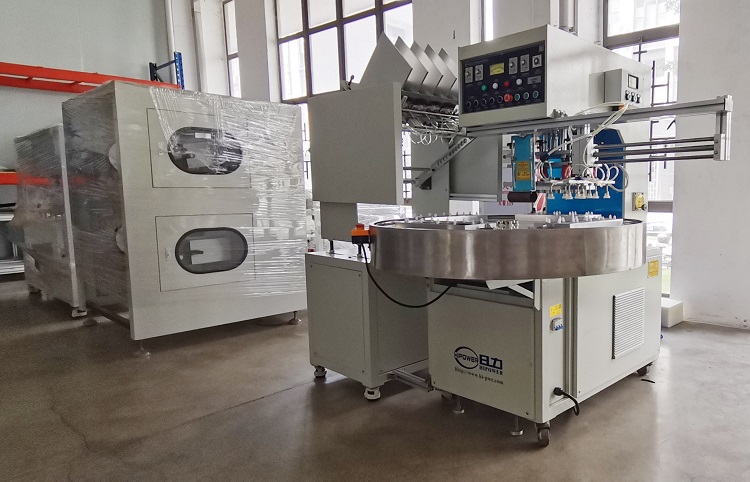

Product Photos

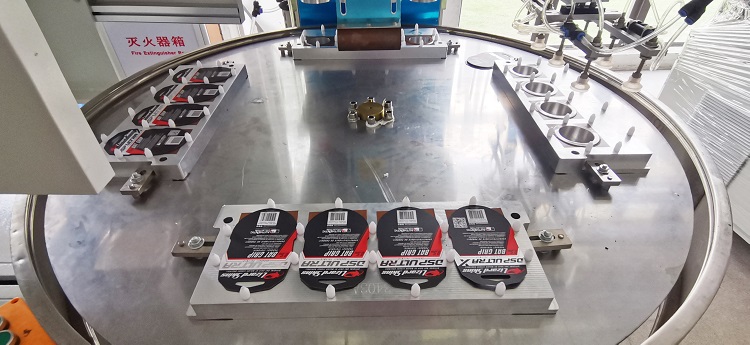

Welded Samples

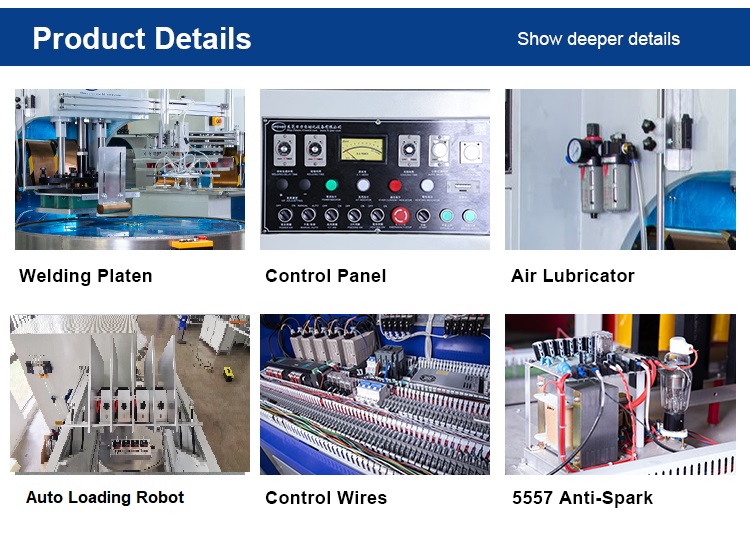

1. Spark suppressor: When sparks, the special electronic circuit works and cuts off the high frequency to suppress spark automatically and minimize the damage of electrodes and materials. Also. The warning lights works.
2. Prevention for radio interference device: Equipped with frequency stabilizer and high-frequency magnetic leakage suppressor. This device eliminates the leakage of radio waves to interfere other electronic devices such as TV, radios, etc..
3. Safety devices: When the current exceeds the limit value, the overload current relay works to protect oscillator and rectifier automatically. Frequency deviation caused by the improper operation is also prevented.
4. Easily adjustable device: Output power can be adjusted according to electrode size and material thickness. Other control devices and special electronic circuits can reduce required welding time and improve the machine's productivity.
Our company insists the quality first, customer supreme idea, our superiority: One year and so on maintenance, three months and so on exchange guaranteed, life-long service.
Model | HR-8KW-4AC | HR-10KW-4AC | HR-12KW-4AC | HR-15KW-4AC |
HF Power | 8KW | 10KW | 12KW | 15KW |
HF Frequency | 27.12MHZ | |||
Voltage | AC 380V 3Phases 50HZ / Customer request | |||
Pneumatic Pressure | 0.1 - 0.8Mpa | |||
Input Power： | 15KVA | 18KVA | 20KVA | 25KVA |
Max. Pressure： | 20Tons Pneumatic | |||
Max. Electrodes Gap ： | 150MM | |||
Electrode Gap： | 175MM | |||
Upper Electrode： | 300*400mm | 300*400mm | 400*500mm | |
Lower Work Platen： | 300*400mm | 300*400mm | 400*500mm | |
Output Time | 0.01 - 30S Adjustable | |||
Control Method | Control Panel Type（ PLC+HMI Touch screen on extra cost） | |||
HF Generator | HIPOWER 8KW | HIPOWER 10KW | HIPOWER 12KW | HIPOWER 15KW |
Parameter Setting | HF Power+Time Adjusting+Pressure Adjusting | |||
Welding Depth Setting | HF Power+Time Adjusting+Pressure Adjusting | |||
Balance Setting | Upper Electrode Balance + Balance Screws Adjusting | |||
Optional Function | Auto Tuning System on Extra cost | |||
Standard | CE Certificate | |||
Packing Information | L2150*W1050*H1950 mm; G.W.: 580KGS； | |||

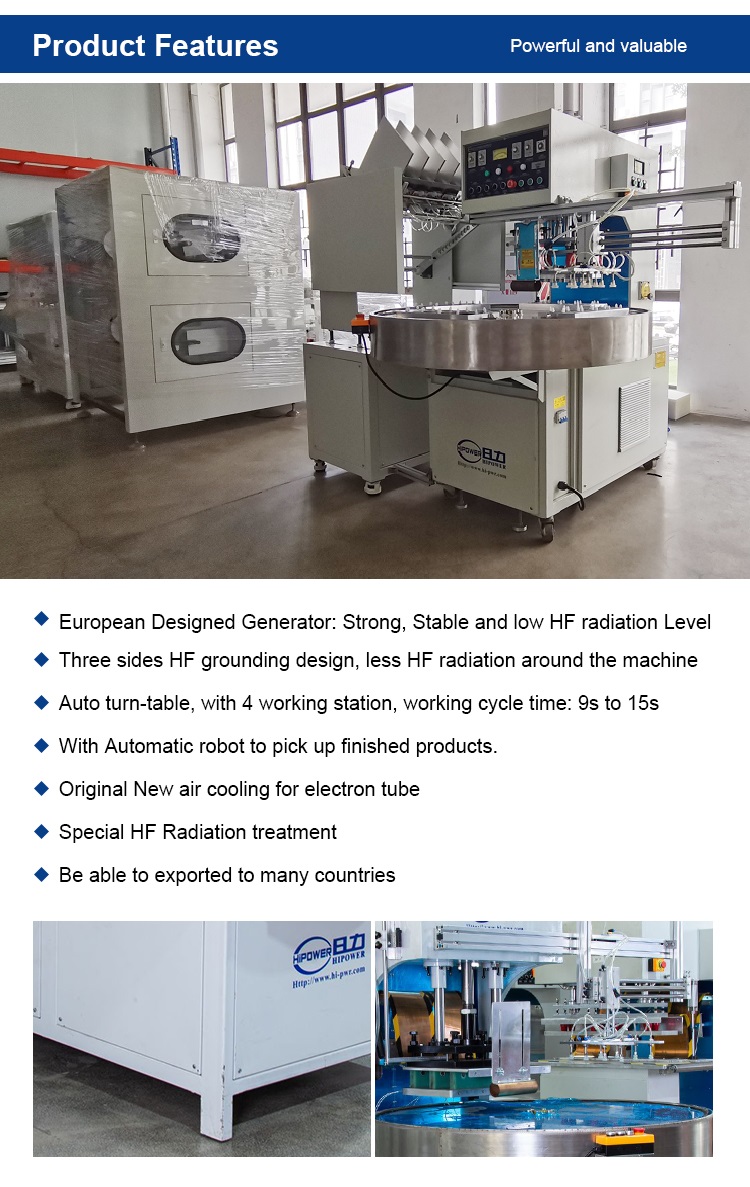

1. European Designed Generator: Strong, Stable and low HF radiation Level
2. Three sides HF grounding design, less HF radiation around the machine
3. Auto rotary table machine, to share one generator.
4. Workers’ working loading is less heavy with auto sliding table
5. Original New air cooling for electron tube
6. Special HF Radiation treatment
7. Quality wheels, easy to move around freely
8. Pneumatic die cutting machine on the machine, it helps for plastic cutting application.
9. CE certificate, be able to exported to many countries
1. Auto tuning system 2. PLC & HMI Touch screen
We use this machine applied for APET, PETG, GAG environmentally friendly materials double side blister packaging and sealing, blister + paper card packaging , toothbrush sealed packaging, EVA leather cloth, leather, OPP, PU material welding and fusing.
Since 2000, Hipower concentrates on highest quality, on-time delivery, professional technology
support, customer-oriented service and competitive price.
1. Customer's site installation, training & maintenance available
2. (Time zone difference) 1-12 hours Online service by Email, Fax, Video Online for basic setup and repairs
3. Service of 12 months warranty for machine, life-long tech. support
4. Examining mold drawings on your behalf to confirm optimum structure size meeting high frequency process;
5. Providing assistance in manufacturing and modifying tools;
High Speed Leather HF Welding And Cutting Machine, produced by HIPOWER for more than 15 years.
We have rich experience in this filed.
